K-1036210 Kohler Air Blower Replacement System | Complete Kit
Share

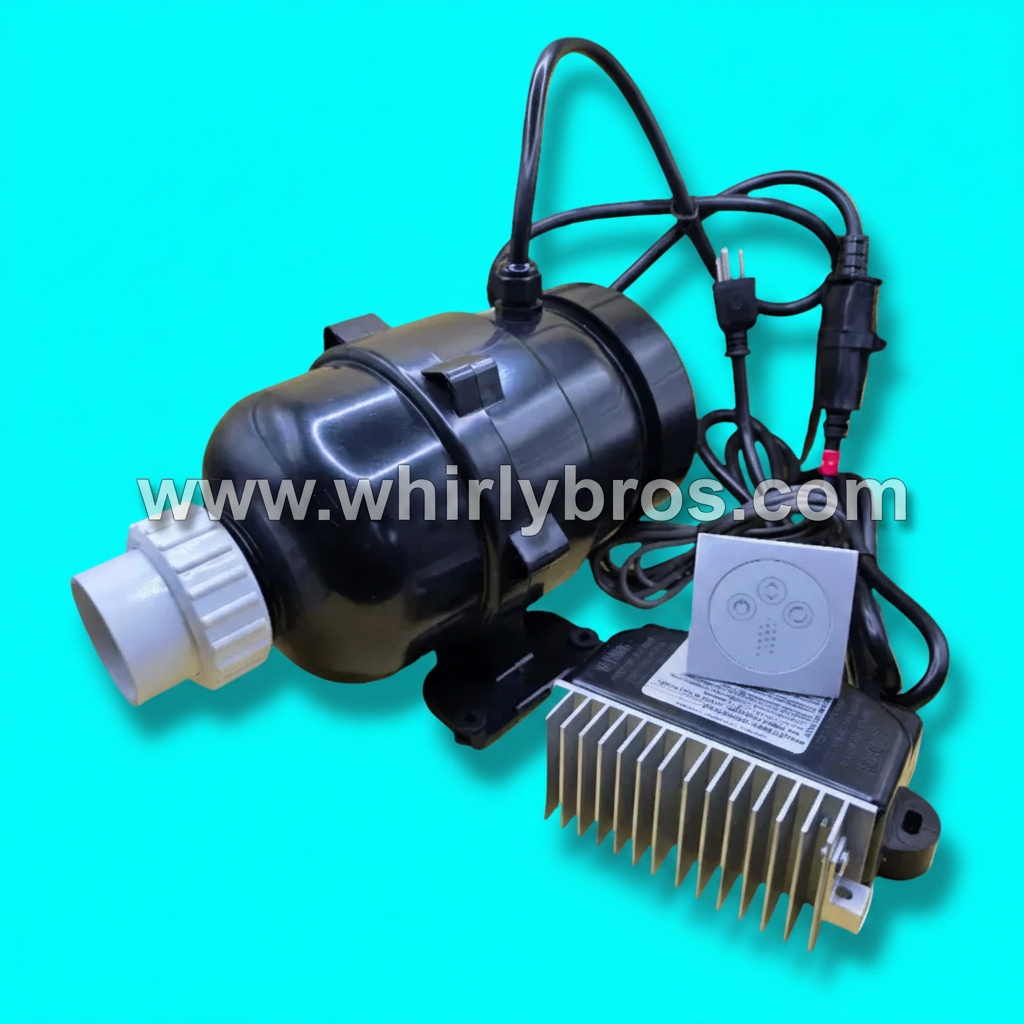

Complete aftermarket retrofit for compatible Kohler K-1036210 and 1036210 air bath systems. It replaces the original blower, electronic controls, keypad, and communication cable with coordinated CG Air Systems components.
It powers the air jets that create bubbles in a Kohler air bath. It does not circulate water through whirlpool jets.
The original Kohler blower and control components are obsolete or difficult to replace individually. This complete 120V system modernizes the blower, control box, keypad, and cable while allowing you to keep your existing bathtub.
Quick Facts
| Replacement For | Kohler K-1036210 / 1036210 |
|---|---|
| System Manufacturer | CG Air Systems |
| Electrical | 120V, 60Hz |
| Blower | 700W variable-speed air blower |
| Air Heater | Integrated 120W air heater |
| Operating Cycle | Automatic 20-minute timer |
| Keypad Trim | Approximately 2.5 inches square |
| Opening Coverage | Designed to cover an approximately 1-7/8-inch opening |
| Warranty | One-year limited warranty |
What’s Included
- 700W variable-speed air blower
- Integrated 120W air heater
- Electronic control box
- White electronic keypad with trim
- Keypad communication cable
- Air-line union or connection fitting
- Installation instructions
Keypad Fit

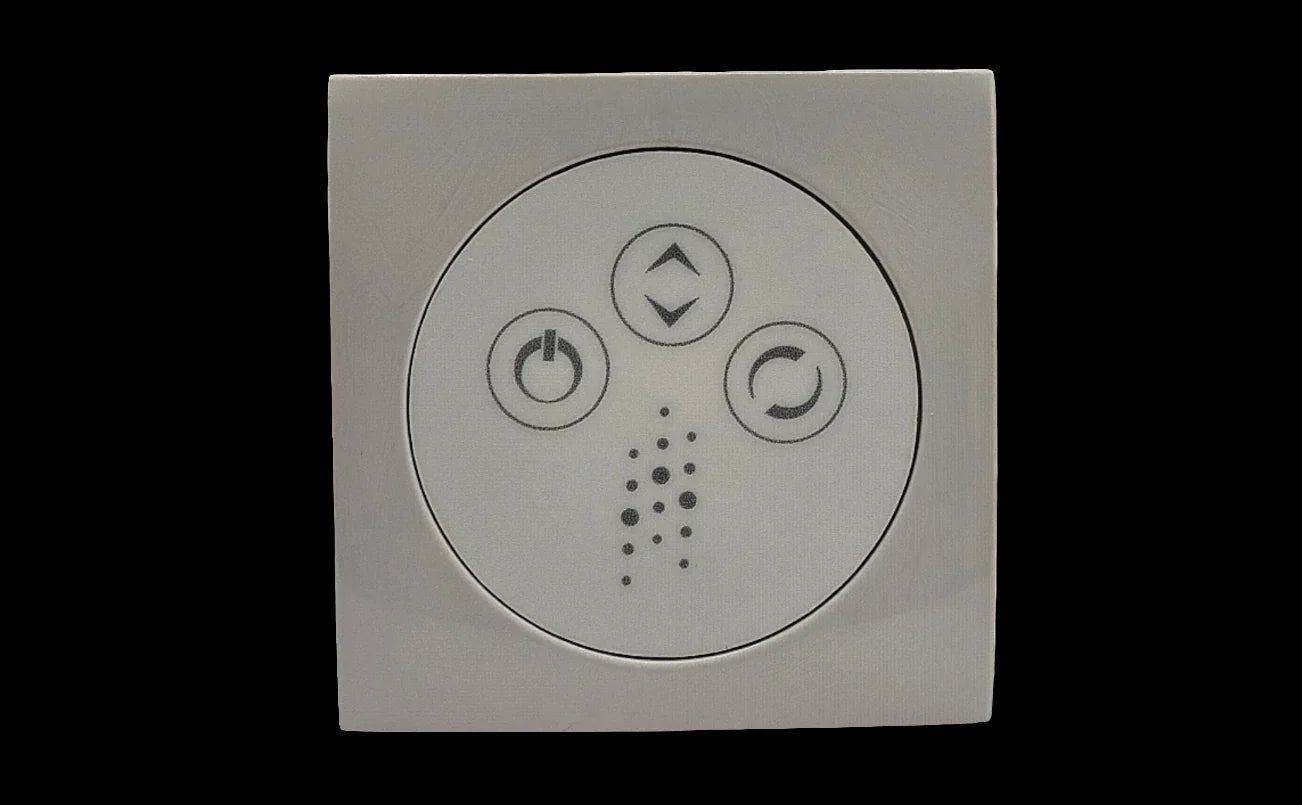

The white keypad has an approximately 2.5-inch square trim designed to cover the original approximately 1-7/8-inch opening. It attaches to a clean, flat bathtub surface using adhesive backing.
Measure the existing opening and surrounding flat mounting area before ordering.
Variable-Speed Heated Air

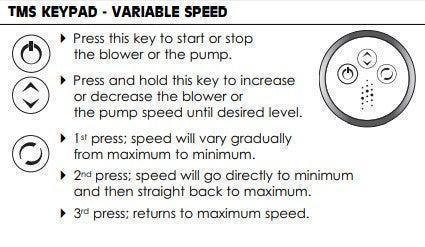

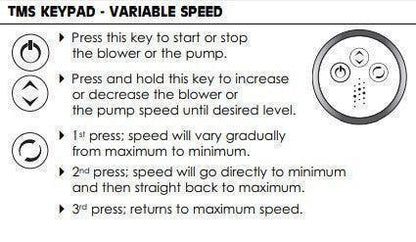

The keypad allows the airflow to be adjusted from gentle bubbling to a stronger air massage. The integrated 120W heater warms the air entering the bathtub to help reduce the cold-air sensation at the air jets.
The air heater does not heat the bathwater and is not a substitute for a whirlpool tub water heater.
Before Ordering or Installing
- Confirm the original blower label shows K-1036210 or 1036210.
- Verify the original system operates on 120V/60Hz.
- Confirm the keypad opening, blower air connection, and available mounting space.
- The new blower, control box, keypad, and cable are designed to operate together. Do not assume original Kohler controls will operate the replacement blower.
- Disconnect electrical power before accessing the equipment area.
- Keep the blower and control box accessible for future service.
- Follow the supplied instructions and applicable electrical codes.
- Use a qualified professional whenever wiring, grounding, or equipment compatibility is uncertain.
Need a Different Control Option?
Whirly Bros also offers keypad and wireless-remote retrofit options for compatible Kohler 1036210 and 1039685 installations.
Compare Kohler 1036210 and 1039685 Air Blower Systems →
Need Help Confirming Compatibility?
Send clear photos of the original blower label, keypad, control box, air connection, electrical cord, and available installation space.
Call or text Whirly Bros at (951) 897-1878
Kohler® and BubbleMassage® are trademarks of Kohler Co. Manufacturer names and part numbers are used solely for identification and compatibility reference. This aftermarket replacement system is not manufactured, sponsored, authorized, or endorsed by Kohler Co.
